產品特點
Product Features

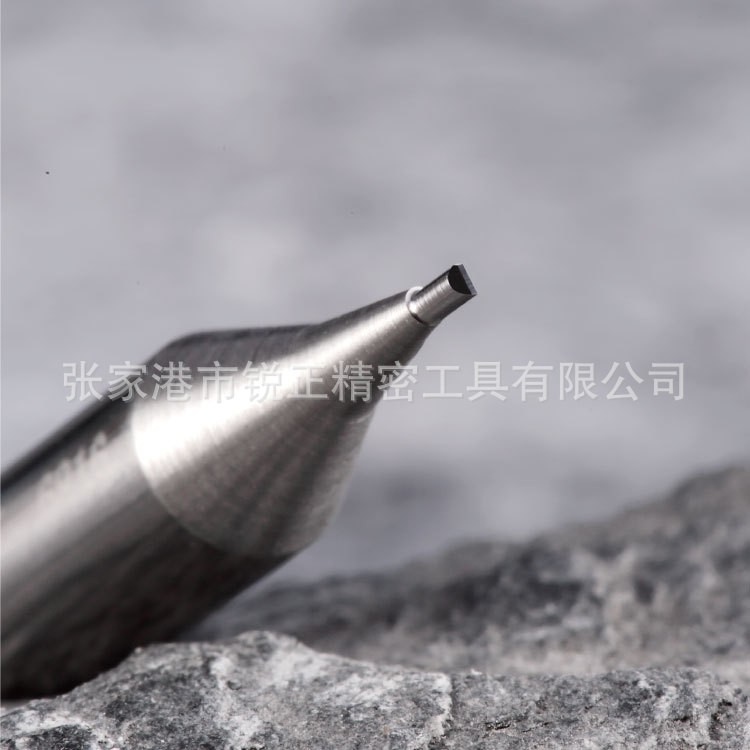

1.Material: It is made of solid carbide, the material is impact-resistant material, with good wear
resistance and good impact resistance.
2. Manufacturing process: It has patented design and three dimensions to enhance the rigidity of the tip, the rigidity is 50 stronger than the spiral groove end mill design, and not easily broken.
3.Features: Cutter edge is very sharp, can cut copper key, and nickel silver key.
4.Advantages: It is suitable for the processing of C-class lock cylinder multi-track key, which makes processed key slot smooth and no burr.
規格表
Specification
訂貨編號 Order code |
銳正代碼 RAISE Ref |
規格 Size |
可替代銑刀代碼 Replaceable cutters Ref |
P-774 |
AW5510 |
1.0mm |
EW5510B/0039# |
P-1155 |
AW5512 |
1.2mm |
EW5512B/0039B |
P-775 |
AW5515 |
1.5mm |
EW5515B/F3/0040# |
P-3694 |
AW5520 |
2.0mm |
EW5520B/F33/F44/0041# |
P-3695 |
AW5525 |
2.5mm |
EW5525B/F11/F22/0042# |
適用機型:各種立式手動鑰匙機;如363, 333L, 339, 369, 368A&B, 398AC, 399AC, 369,368B,383AC,388AC,398AC,399AC, Q36,Q38,Q39,Q30,Q32,Q31
Suit for Machine: various vertical manual key machines, such as 363, 333L, 339, 369, 368A&B, 398AC, 399AC, 369,368B,383AC,388AC,398AC,399AC, Q36,Q38,Q39,Q30,Q32,Q31
注意事項:
Attention:
請選用正確規格的導針;
Please choose the Corresponding size tracer point;
刀尖伸出安裝孔的距離不要超過20mm;
The distance from the tip of cutter to the mounting hole should less than 20mm;
Gladaid和精 準鑰匙機請選用特定規格的銑刀,詳情可咨詢RAISE的工程師
For GLADAID and MODERN key machines, please use a specific size end mill cutter. For details, please contact RAISE engineers.
